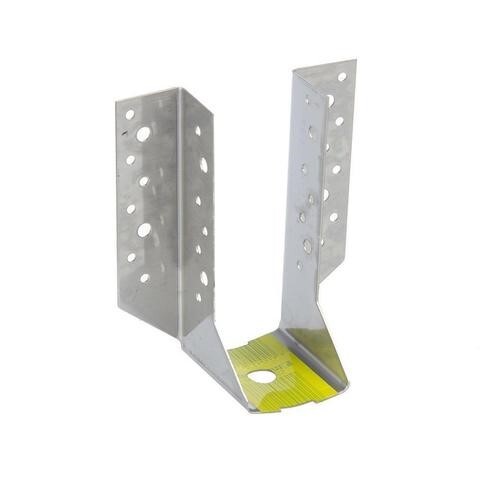

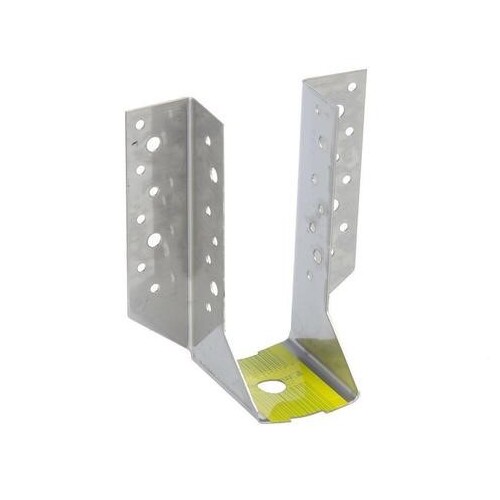

Lumberlok JH47120 Joist Hanger 47mm x 120mm Stainless Steel



The Lumberlok SSJH47120 Joist Hanger are designed to be used where a strong rigid joint is required between timbers butting together at 90 deg. This makes its use in connecting floor joists to beams, and trusses or rafters to beams/bearers commonplace. This hangar has been made from grade 304 stainless steel which gives it superior corrosion resistance. This hangar can be used in exterior applications where moisture may occur, including coastal zones. It is recommended that this joist hangar is fixed using 30 mm x 3.15 mm nails or Type 17 - 12 g x 35 mm screws.



  • Multi-use bracket suitable for gauged 47 mm thick timber up to 200 mm deep
  • Stainless steel gives corrosion protection
  • 5 nails required per flange (4 flanges per hanger)
  • 2 screws required per flange



Specification:

Ideal for connecting timbers which are at perpendicular angles.

Code: SSJH47120

Brand: Lumberlok

Product Type: Joist Hanger

Length: 120 mm

Width: 47 mm

Thickness: 0.95 mm

Material: 304 Stainless Steel

Pack Size: 1/Pack



(SSJH47120)

SKU SSJH47120
Brand Mitek
