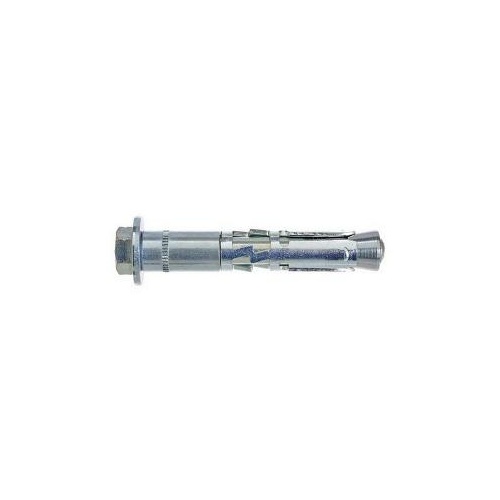

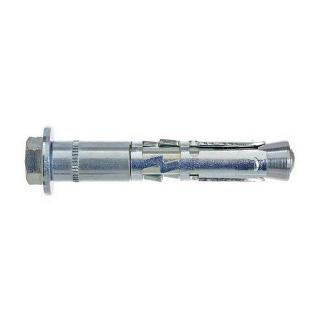

Ramset SpaTec Plus M12 x 120mm



PRODUCT DESCRIPTION

  • The SpaTec™ Plus Safety Anchor is a heavy duty, torque controlled expansion anchor, with an integrated pull-down section, designed for high performance in both static and dynamic load applications, in both cracked and non-cracked concrete~
  • The SpaTec™ Plus is ideally suited for through fixing into concrete when security and reliability are paramount.

~Whether a concrete element is classified as cracked or non-cracked is to be determined by a qualified structural engineer



Features & Benefits

• The combination of a high tensile class 8.8 bolt with an extra thick-walled

spacer allows a smaller diameter bolt to be used for easier installation

while still providing both excellent tensile and shear performance. The

spacer also incorporates a visual maximum fixture thickness indicator for

ease of use.

• The patented anti-rotation expansion sleeve is designed with sharp angled

protrusions that grip the sides of the hole, preventing anchor rotation

during installation. As expansion of the sleeve begins, the locking barbs

also grip the sides of the hole, further embedding as expansion

progresses, giving extra holding power. The sleeve pulls down during

tightening ensuring excellent pressure between the fixture and the

concrete.

• The low profile hex or countersunk heads provide a neat finish.





PRODUCT SIZE: M12 X 120



PRODUCT CODE: SP12120

(SP12120)

SKU SP12120
Brand Ramset
