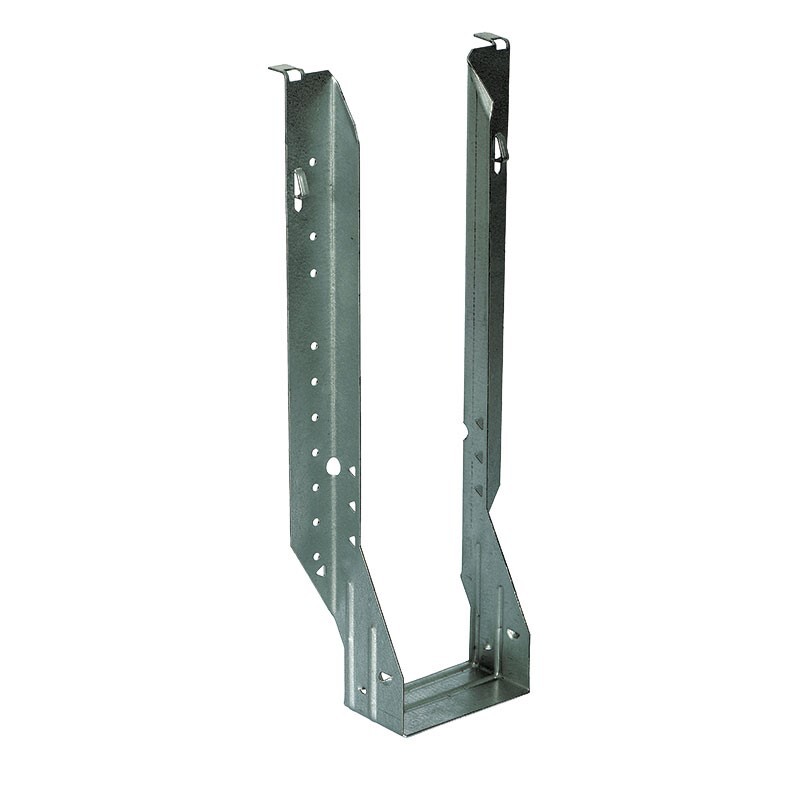

Simpson Strong Tie IUSE199/92 IUSE Face Fix I-Joist Hanger Z275 Galvanised



The STIUSE199/92   Face Fix I-Joist Hanger is a hybrid hanger that incorporates the advantages of a face mount and top mount hanger. Installation is fast with the Strong‑Grip™ seat, easy‑to‑reach face nails and self‑jigging locator tabs. Nailing is done on the lateral flanges after pre-positioning the connectors with speed prongs.

  • This hanger incorporates the Strong‑Grip™ seat which secures the I‑joist without the need for any fasteners
  • Positive angle nailing (PAN) minimises splitting of the joist flanges
  • Engineered swages for extra strength and to minimise deflections
  • Top flanges make installation easier and quicker
  • Speed Prongs help to temporarily position and secure the connector for easier and faster installation
  • Available with a wide range of I-Joist sizes



Installation

  • Use all specified fasteners
  • Position I‑joist into hanger and snap into place. No joist nailing required. Some models have triangle and round header nail holes. To achieve Max. download, fill both round and triangle holes
  • Locator tabs are not structural. They may be bent back to adjust for hanger placement
  • I‑joists with web stiffeners or rectangular sections can be used with the installation of 2 – 38mm x 3.75mm nails into the optional triangle joist nails



Specification:

Code: STIUSE199/92

Brand: Simpson Strong Tie

Category: Hangers

Joist Size: 45mm

Dimensions: 199x92x51

Material: Carbon Steel 1.2mm thick

Finish: Z275 Galvanised









(STIUSE19992)

SKU STIUSE19992
Brand Simpson Strong Tie
