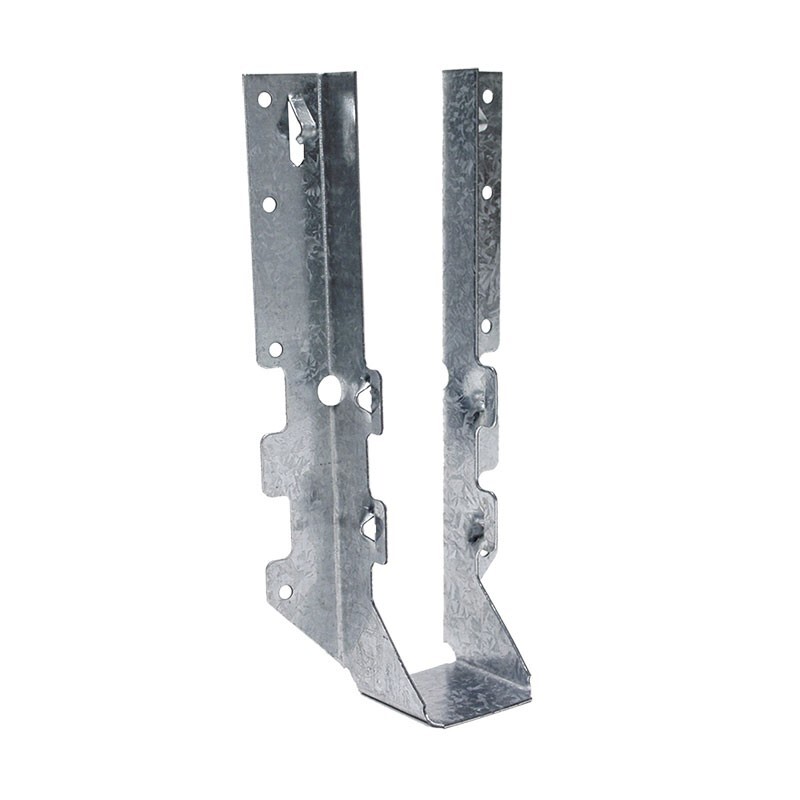

Simpson Strong Tie LUS46/118Z Double Shear Joist Hanger 45mm x 120-160mm ZMAX Galvanised



Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. The STLUS46/118Z Double Shear Joist Hanger is engineering at its finest. All hangers in the LUS series have Double-Shear Nailing. This innovation distributes the load through two points on each joist nail for greater strength. It also allows the use of fewer nails, faster installation and the use of standard nails for all connections.

To help with installation speed every LUS Joist Hanger incorporates the Simpson Strong‑Tie Speed Prong feature which is designed to temporarily position and secure the connector for easier and faster installation.



  • Stamp of "Double-Shear Nailing" on the side
  • Patented double-shear nailing design ensures a strong, durable connection (U.S. Patent 5,603,580)
  • Slit width dome guides the nail into the joist at a 45° angle
  • Speed Prongs help to temporarily position and secure the connector for easier and faster installation
  • Angled joist nailing easier in tight spaces
  • Designed for greater strength with fewer fasteners to install
  • Do not bend or remove tabs
  • The CCN64 Collated Connector Nailer is the perfect companion for the LUS and other Simpson Strong Tie timber connectors to get the job done with ease and in less time
  • Compatible with Strong-Drive® SD screws
  • Available in 316 Stainless Steel for outdoor structures and more corrosive environments such as coastal areas



Installation

  • Use all specified fasteners
  • Nails must be driven at a 45° angle through the joist or truss into the header to achieve the table loads
  • Not designed for welded applications
  • Use SCNR stainless steel nails with LUS stainless steel hangers
  • LUS hangers cannot be modified (Do not bend or remove tabs)



Material: Carbon Steel or Stainless Steel 1.2mm thick: LUS46

   Carbon Steel 2mm thick: HUS48Z

Finish: ZMAX® Galvanised: LUS46/77Z; LUS46/118Z; LUS46/166Z; HUS48Z

             316 Stainless Steel: LUS46/77SS; LUS46/118SS; LUS46/166SS



(STLUS46118Z)

SKU STLUS46118Z
Brand Simpson Strong Tie
